Hardware Product

Glass-to-Wall Wall orion Hinge

Heavy wall plates with concealed fasteners for masonry walls.

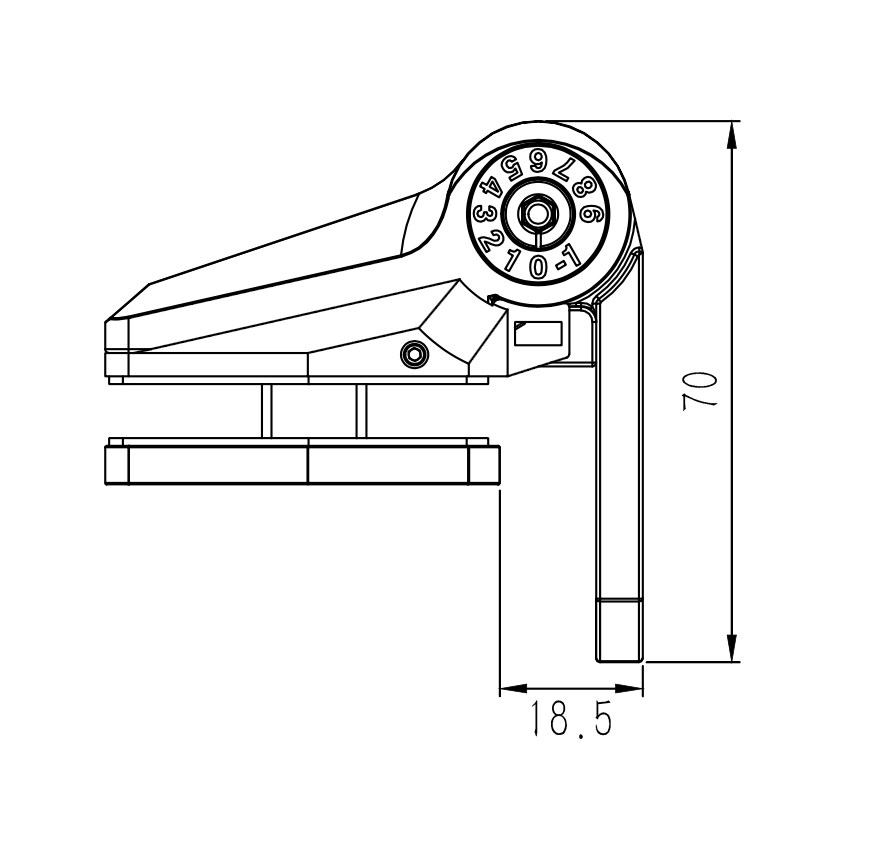

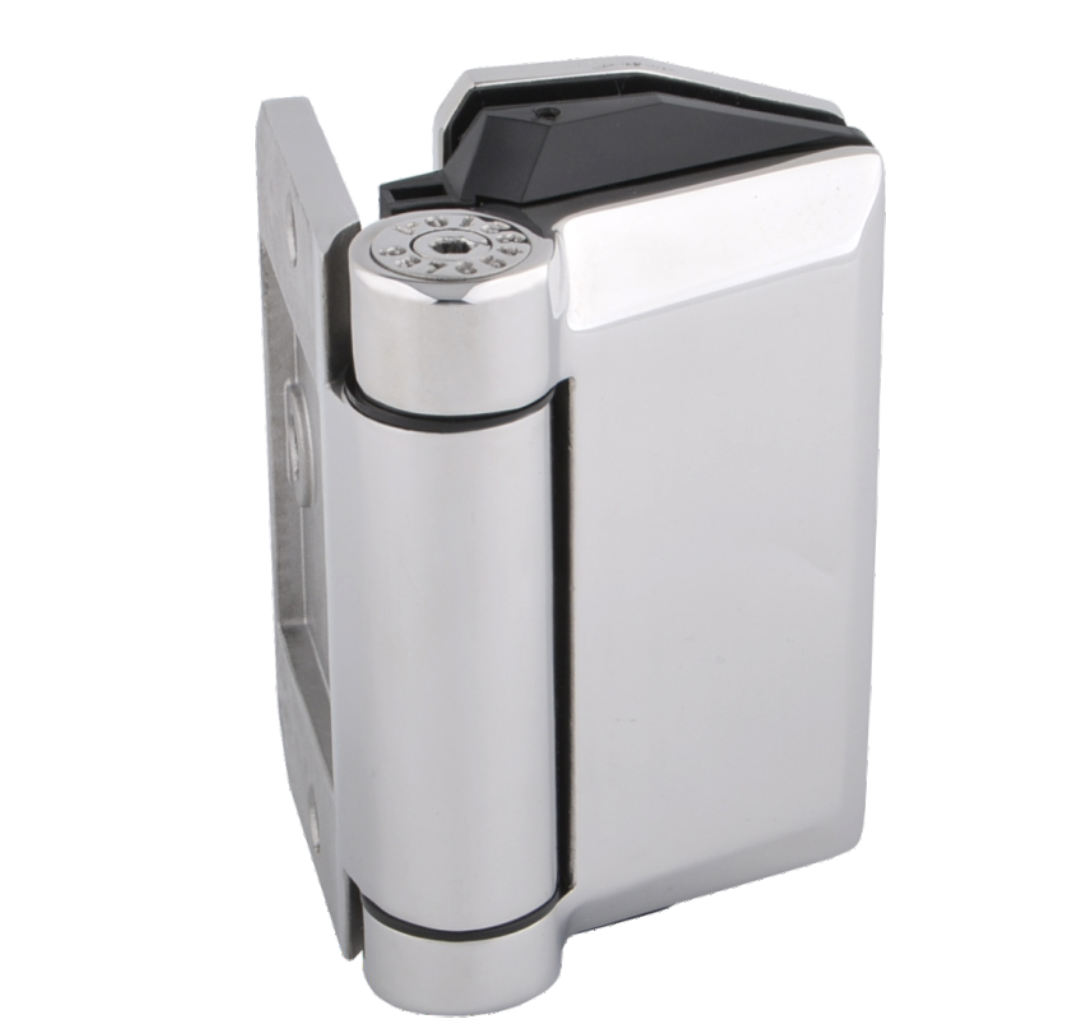

Glass-to-Wall Wall orion Hinge

Located within the Hinges suite, Glass-to-Wall Wall orion Hinge pairs with KKX glass systems and hardware kits.

Product Specs

  • SHC4821M5 Polished
  • SHC4821S5 Satin
  • SHC4821B5 Matt Black
  • Patented soft close hinge-Glass to Glass application Complies with Australian standards for pool fencing
  • Robust and corrosion resistant construction made of duplex 2205 stainless steel

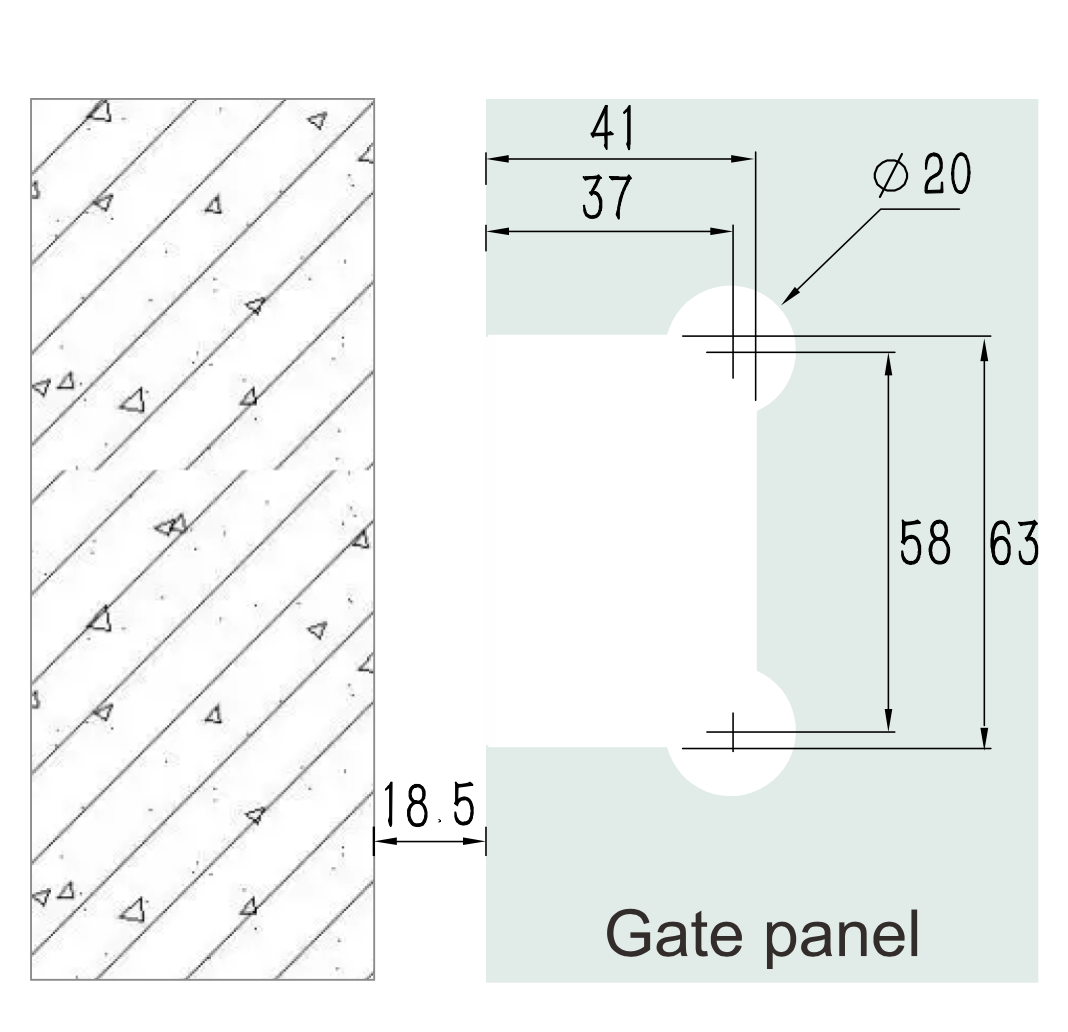

  • Suitable for 8mm, 10mm and 12mm glass gates
  • Patented tension adjustment (closing speed adjustment) with just an Allen key
  • Special designed locator to prevent gate from sagging
  • Multi fit, compatible with glass gates with fixing holes or
